FortiClient Log Collection Integration ​

Configuring FortiClient integration for Realm Security ​

Realm Security collects Forticlient logs via Fortianalyzer. The steps for configuring Forticlient and Fortianalyzer for log collection.

Prerequisites ​

  • Administrative access to the FortiClient EMS
  • Administrative access to FortiAnalyzer
  • Realm collector is setup and running with a Raw TCP Stream. See Realm Collector install guide for setting up a collector.
  • Realm Security Raw TCP collector IP address or FQDN
  • Realm Collector receiving port number. In Realm console, go to Collectors > select collector > Copy port number listed for the Stream.

Configure FortiClient log forwarding to FortiAnalyzer with FortiClient EMS ​

You can see more options on how to configure Endpoint Profiles, see the FortiClient docs https://docs.fortinet.com/document/forticlient/6.2.9/ems-administration-guide/107284/system-settings

  • In FortiClient EMS go to Endpoint Profiles > System Settings and edit the desired profile.
  • In the 'Log' section, Enable 'Upload Logs to FortiAnalyzer/FortiManager' and enter the IP Address/Hostname and port of the configured FortiAnalyzer instance, or if using FortiAnalyzer Cloud, just hit "Auto-config FAZ Cloud" ObjectsMenu

Configure FortiAnalyzer to forward logs to Realm Collector ​

More options for Configuring FortiAnalyzer Log Forwarding can be seen here https://docs.fortinet.com/document/fortianalyzer/7.6.6/administration-guide/19991/configuring-log-forwarding

  • Enable Administrative Domain(ADOM) in FortiAnalyzer in System Settings > Administrative Domain and then creating or selecting the FortiClient ADOM.
  • To connect FortiClient EMS to FortiAnalyzer, in FortiAnalyzer, go to Device Manager > Add Device, and enter the FortiClient EMS Serial Number.

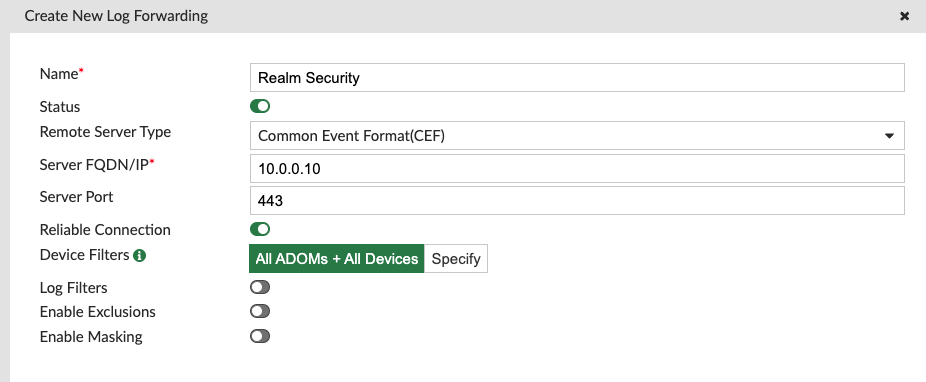

  • To forward logs from FortiAnalyzer to Realm, go to System Settings > Advanced, and click on the Log Forwarding tab and Create New.
  • Choose Common Event Format(CEF) for the Remote Server Type, and fill in the Realm Collector Server FQDN/IP to forward logs to, and set the Port of the Collector stream. ObjectsMenu
